Point Source Coaxial Monitors
| Model | HCS-112CM | HCS-115CM |
| System Type | 2-Way 12" point source coaxial monitor | 2-Way 15" point source coaxial monitor |
| Coverage Pattern (hxv) | 60° x 40° | 60° x 40° |
| Maximum SPL | 130 dB | 136 dB |
| Dimensions (h/w/d) | 310x500x399 mm | 345x600x462 mm |
| Net weight | 15,0 kg | 19,0 kg |
The HCS-CM speakers are professional stage monitors that feature powerful, distortion-free coaxial drivers. The integrated horn provides a 60° x 40° coverage pattern. The optimised crossover design ensures powerful and clear vocal reproduction. The neodymium compression driver is protected against overload by an effective protection circuit. The cabinet is designed for stage use and features handles on the front and back. There is an NL4 speaker connector on each side of the cabinet for cabling or connecting a second monitor.
Technical Specifications
| Model | HCS-112CM | HCS-115CM |
| GS1 (EAN) CODE | 4260318510134 | 4260318510141 |
| System Type | 2-Way 12" point source coaxial monitor | 2-Way 15" point source coaxial monitor |
| Power Rating | 500 W AES 1000 W program 2000 W peak |
600 W AES 1200 W program 2400 W peak |
| Coverage Pattern (hxv) | 60°x40° | 60°x40° |
| Frequency Range (+/- 3 dB) | 49 Hz - 20 kHz | 45 Hz - 20 kHz |
| Sensitivity | 100 dB 1w/1m | 103 dB 1w/1m |
| Maximum SPL | 130 dB | 136 dB |
| Nominal Impedance | 8 Ohm | 8 Ohm |
| Input Connectors | 2xNeutrik NL4 Sockets Parallel 1+/1- |
2xNeutrik NL4 Sockets Parallel 1+/1- |
| Housing | Birch plywood | Birch plywood |
| Coating | Waterproof polyurea coating | Waterproof polyurea coating |
| Dimensions (h/w/d) | 310x500x399 mm | 345x600x462 mm |
| Net weight | 15,0 kg | 19,0 kg |

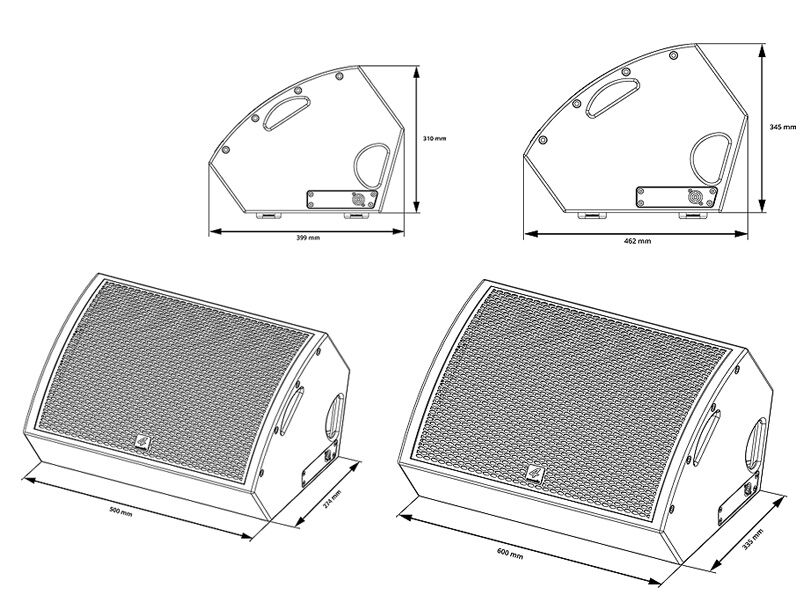

Drawing

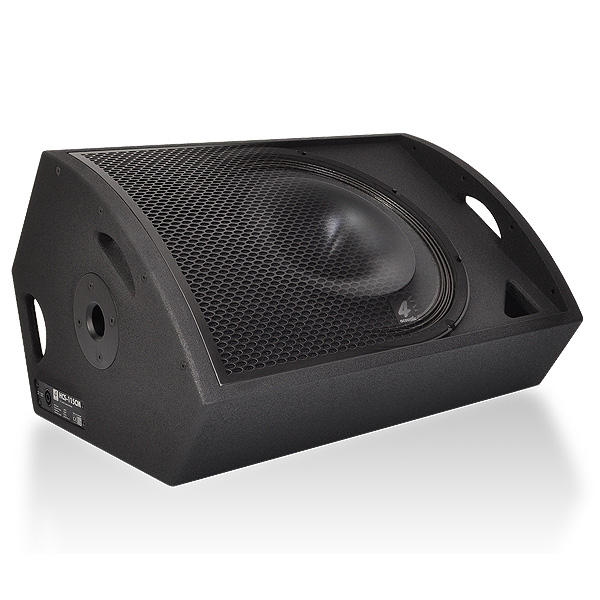

Photos HCS-112CM

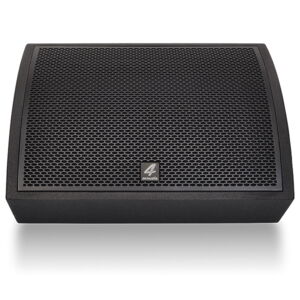

Photos HCS-115CM
Accessories

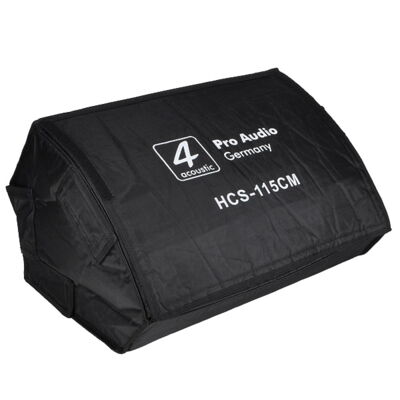

Protection for transport and rain

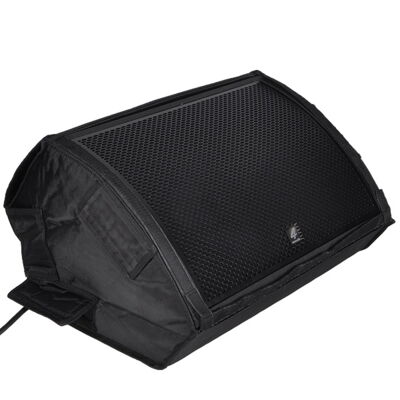

Protection for transport and rain
Carrying case
