PCS-212L

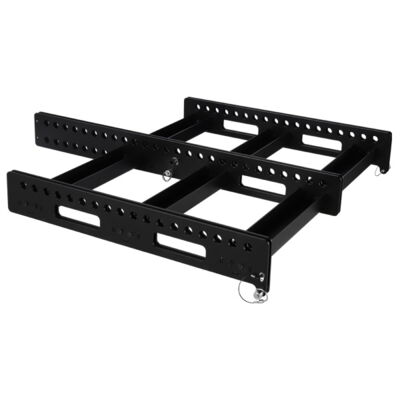

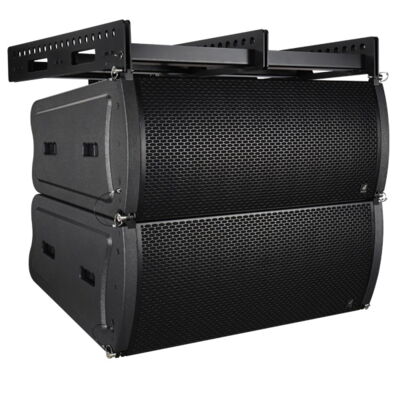

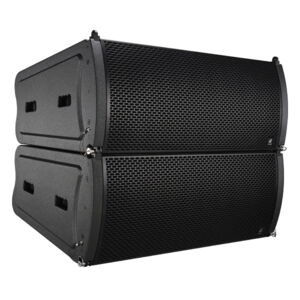

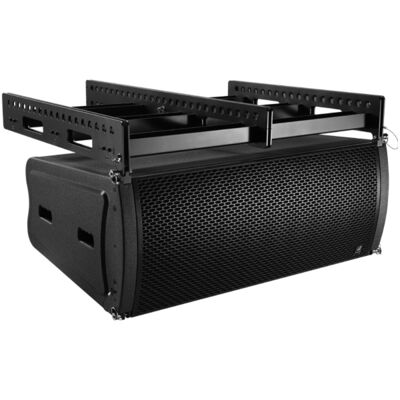

The PCS-212L is a compact, three-way, full-range line array loudspeaker designed for use in vertical line array columns of up to ten units per fly frame. Its mechanical design allows vertical adjustment from 0° to 10° in 1° increments. All flyware components are made of high-quality, heavy-duty aluminium. The three-way system comprises two 12″ neodymium woofers, four 6.5″ neodymium mid-woofers and two centrally mounted 1.4″ neodymium drivers with a 2.5″ voice coil. The drivers are mounted on a precisely calculated line array horn. A single unit has a maximum sound pressure level of 137 dB. The coverage pattern is 10° x 120° (vertical x horizontal). The robust, weatherproof enclosure is made of high-quality Baltic birch plywood and features an impact-resistant, black, waterproof polyurea coating. Four integrated handles facilitate transport and installation. A 1.5 mm thick black metal grille covered with black acoustic foam protects the front of the loudspeaker. The flight frame construction allows for suspended or floor-standing mounting on PCS subwoofers. The 3-way module operates as a 2-way bi-amp system, requiring only two amplifier channels. Its compact size guarantees maximum flexibility.
