Alligator 2-Way powered
Line Array Speaker

System Type	Dual 10" 2-way powered Line Array Speaker
Maximum SPL	136 dB
Coverage Pattern (hxv)	120°x15°
Dimensions (h/w/d)	320x778x597 mm
Net weight	38,0 kg

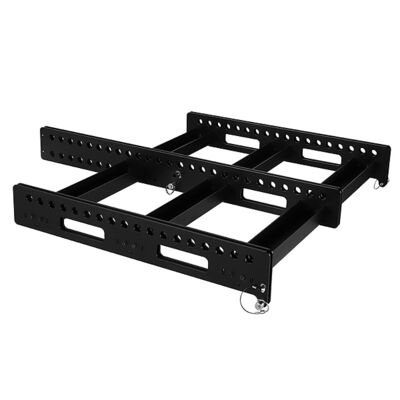

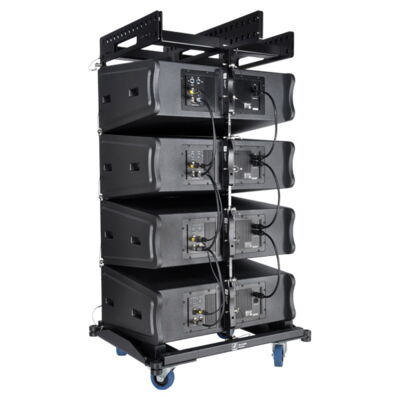

Alligator

The Alligator is full of technical innovations and delivers a transparent, powerful sound that will blow you away! Its two high-performance 10-inch neodymium woofers feature special Kevlar-coated cones and are tuned to a lower cutoff frequency of 75 Hz. The two 1-inch compression drivers exhibit minimal phase shift, fully corrected using FIR technology in the DSP. A phase plug in front of the two 10-inch neodymium drivers ensures optimised dispersion in the desired frequency range. The horn, which has been completely redesigned for the two 1.75-inch compression drivers, is optimised for use as a two-way system and guarantees optimal coupling of the individual Alligator modules at various angles. The oversized, 2-channel, Class D power amplifier offers incredible headroom, providing a total output of 1200 watts. Power dissipation and the associated heat generation have been minimised. The DSP is fully network-compatible and ready for AVB/MILAN operation, which can be enabled upon certification. Our DSM network client allows all connected DSM devices on the network to be displayed and opened for configuration with just one click. Groups can be created and configured synchronously. A wide range of settings is available for group options. This is really convenient! All devices can be muted simultaneously with just one click. All settings on the back of the device can also be overridden and adjusted using the DSM software. Innovative accessories such as flight frames, cases, trolleys and rain covers perfectly complement the system, leaving little to be desired.

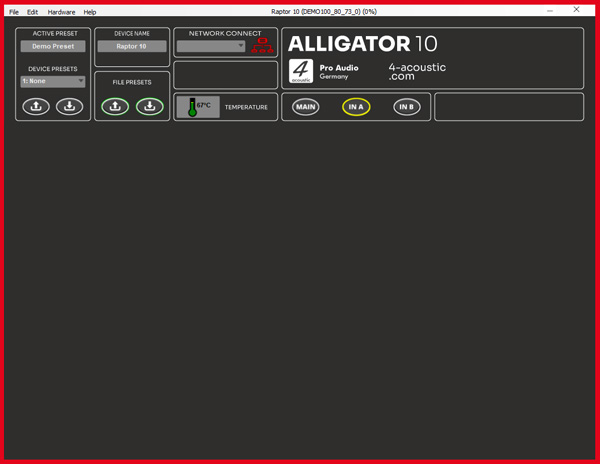

Alligator DSM User Interface

Technical Specifications

GS1 (EAN) CODE	4260318513395
System Type	Dual 10" 2-Wege Aktiv Line Array Lautsprecher
Amplifier Power	1200 Watt
Cooling	Temperatur geregelter Lüfter
Frequency Range	75 Hz - 20 kHz
Coverage Pattern (hxv)	120°x15°
Maximal SPL	138 dB peak @ 1 M

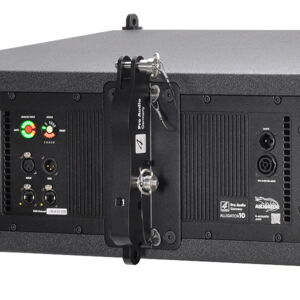

Connectors	1 x Neutrik® XLR Female Line In 1 x Neutrik® XLR male Signal Link 1 x Neutrik® powerCON® True1 Male 1 x Neutrik® powerCON® True1 Female 2 x Neutrik® etherCON® Ethernet
Controls	Illuminated Mute and Preset push buttons
Indicators	Multi function LED ring with VU meter and Mute LEDs Multi function LED ring with amplifier status and active preset LEDs Ethernet connection LEDs
Power Input	PFC 100V-240V 50-60Hz 110V (+/- 10%), 50-60Hz
Power Consumption 1/8 of max output power	100 VAC, 5.2 A 240 VAC, 2.6 A
Housing	Birch Multiplex
Coating	Waterproof polyurea coating
Dimensions (h/w/d)	320x778x597 mm
Net weight	38,0 kg

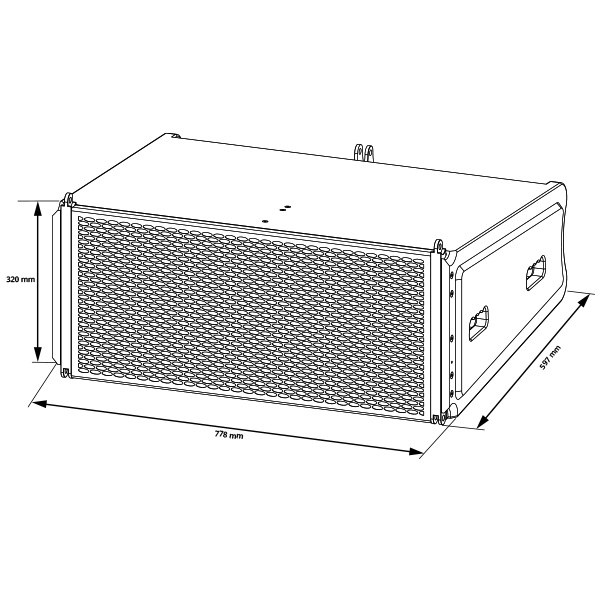

Drawing

DSM-Serie User Interface

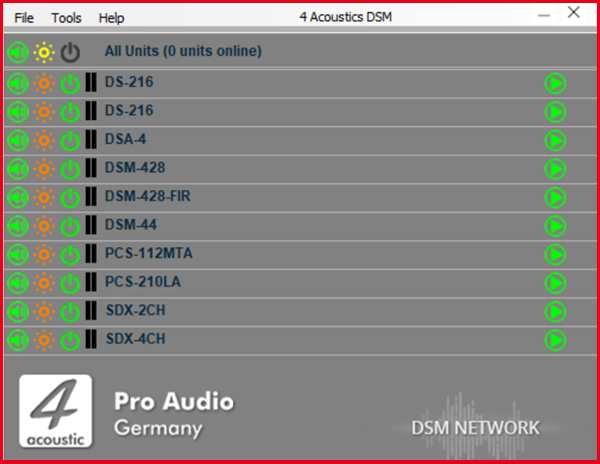

DSM Network Client

A single software solution for all devices. The DSM Network Client automatically scans the connected network and lists the DSM devices it finds. These may include SDX power amplifiers, active speakers, active line array speakers or DSM 19´´ devices. With just one click, you can open the configuration menu for the corresponding device. You can also group devices in the Network Client, allowing you to apply configuration changes quickly and reliably across the entire group.

DSM Navigation Menu

To minimise the need to switch between different sections of the software, the navigation menu is located above all panels. The active preset display is on the left and may also include any current settings that were adjusted during operation. These settings are automatically saved in the active preset and remain available even after a restart. To save the active preset as a fixed preset on the device, assign a name, select the preset number and press the down arrow under 'Device Presets' to save it to the device memory. To load a preset from the device, select the preset number and press the up arrow. Please note that the active preset will be overwritten if it has not yet been saved. To save a preset to the computer, use the 'File Preset' function. The name displayed on the device and the network client can be customised under 'Device Name'. Use the menu buttons to navigate to the relevant configuration panels.

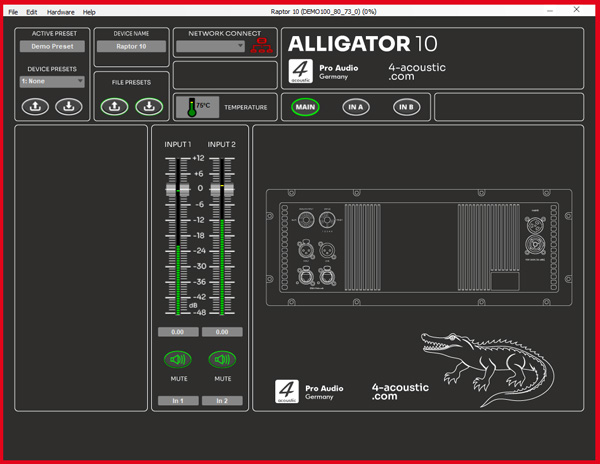

DSM Main Panel

The main panel provides an overview of all the input channels and is fitted with gain controls and level meters. There is a mute button for each channel.

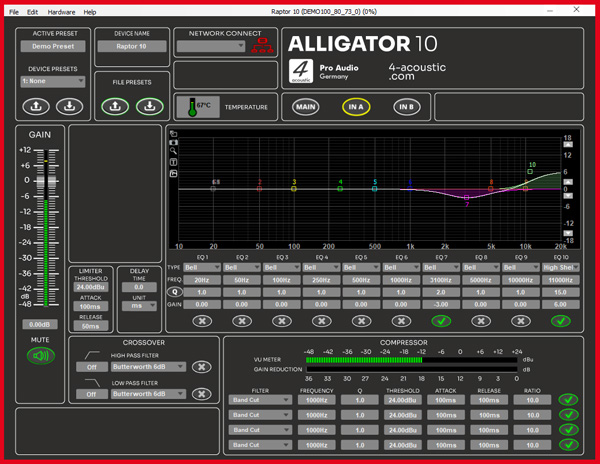

DSM Input Panel

The input panel is a high-quality tool for processing input signals within the DSM. Starting from the left is the gain control, which is accompanied by a level meter and a mute button. To the right of that are the limiter and delay inputs, as well as the crossover settings for high- and low-pass filters. In the centre is the 10-band equaliser and filter unit. Each input also features a 4-band compressor-limiter located at the bottom of the EQ unit.
