PCS-M Multifunction Speaker
| Model | PCS-108M | PCS-110M | PCS-112M | PCS-115M |
| System Typ | 2-Way 8“+1“ Point Source Multifunction Speaker |
2-Way 8“+1“ Point Source Multifunction Speaker |
2-Way 8“+1“ Point Source Multifunction Speaker |
2-Way 8“+1“ Point Source Multifunction Speaker |
| Maximum SPL | 127 dB | 128 dB | 133 dB | 136 dB |
| Dimensions (h/w/d) | 450x260x239 mm | 510x300x278 mm | 610x350x324 mm | 690x410x364 mm |
| Net weight | 13,0 kg | 18,5 kg | 23,0 kg | 28,5 kg |

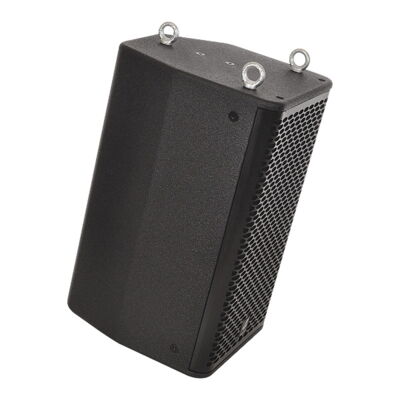

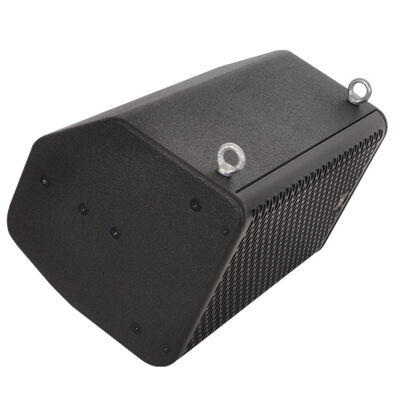

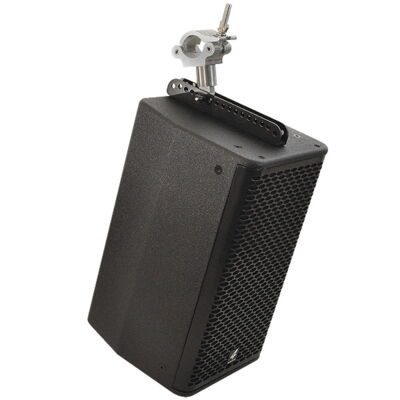

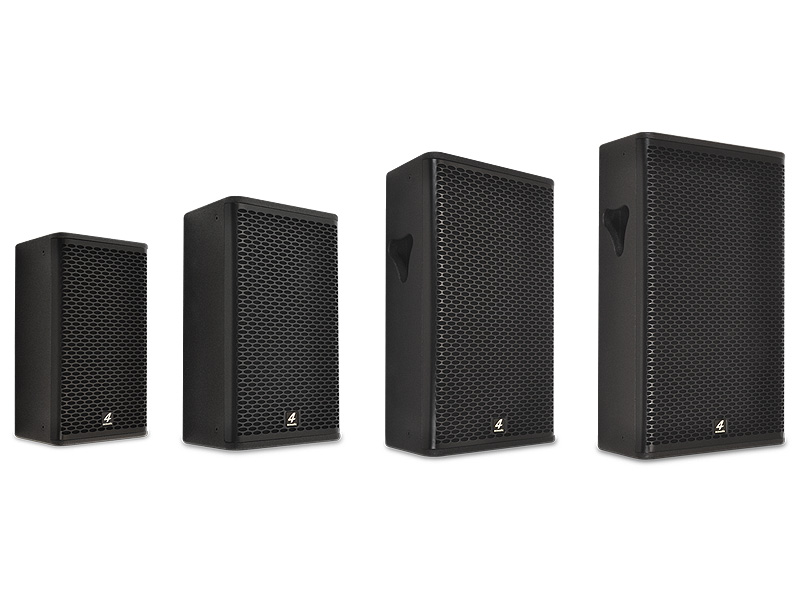

The PCS-M Series extends our product range to include four high-quality, multifunctional, full-range speakers. All four models are equipped with precisely tuned crossovers. The horn can be rotated 90° to optimise the dispersion pattern for use as a floor monitor. This series is characterised by transparent and clearly differentiated midrange and high frequencies. This ensures a harmonious sound, even at very high sound pressure levels. No compromises were made during the manufacturing process. The selection of wood, finish and speaker components is focused exclusively on constructing unique speakers with perfect sound. All speakers in the PCS-M series feature a VSL flying frame mounting base for wall, ceiling and truss mounting, as well as various suspension points. Transport covers are available as an optional extra.
Technical Specifications
| Model | PCS-108M | PCS-110M | PCS-112M | PCS-115M |
| GS1 (EAN) CODE | 4260318510172 | 4260318510189 | 4260318510196 | 4260318510202 |
| System Type | 2-Way 8“+1“ Point Source Multifunction Speaker |
2-Way 10“+1“ Point Source Multifunction Speaker |
2-Way 12“+1,4“ Point Source Multifunction Speaker |
2-Way 15“+1,4“ Point Source Multifunction Speaker |
| Power Rating | 250 W AES 500 W program 1000 W peak |
300 W AES 600 W program 1200 W peak |
500 W AES 1000 W program 2000 W peak |
600 W AES 1200 W program 2400 W peak |
| Coverage Pattern (hxv) | 90°x40° | 90°x40° | 90°x40° | 90°x40° |
| Frequency Range (+/- 3 dB) | 53 Hz - 20 kHz | 50 Hz - 20 kHz | 43 Hz - 20 kHz | 39 Hz - 20 kHz |
| Sensitivity | 97 dB 1w/1m | 98 dB 1w/1m | 101 dB 1w/1m | 103 dB 1w/1m |
| Maximum SPL | 127 dB | 128 dB | 133 dB | 136 dB |
| Nominal Impedance | 8 Ohm | 8 Ohm | 8 Ohm | 8 Ohm |
| Input Connectors | 2xNeutrik NL4 Sockets Parallel 1+/1- |
2xNeutrik NL4 Sockets Parallel 1+/1- |
2xNeutrik NL4 Sockets Parallel 1+/1- |
2xNeutrik NL4 Sockets Parallel 1+/1- |
| Housing | Birken Multiplex Holz | Birken Multiplex Holz | Birken Multiplex Holz | Birken Multiplex Holz |
| Coating | Waterproof polyurea coating | Waterproof polyurea coating | Waterproof polyurea coating | Waterproof polyurea coating |
| Dimensions (h/w/d) | 450x260x239 mm | 510x300x278 mm | 610x350x324 mm | 690x410x364 mm |
| Net weight | 13,0 kg | 18,5 kg | 23,0 kg | 28,5 kg |

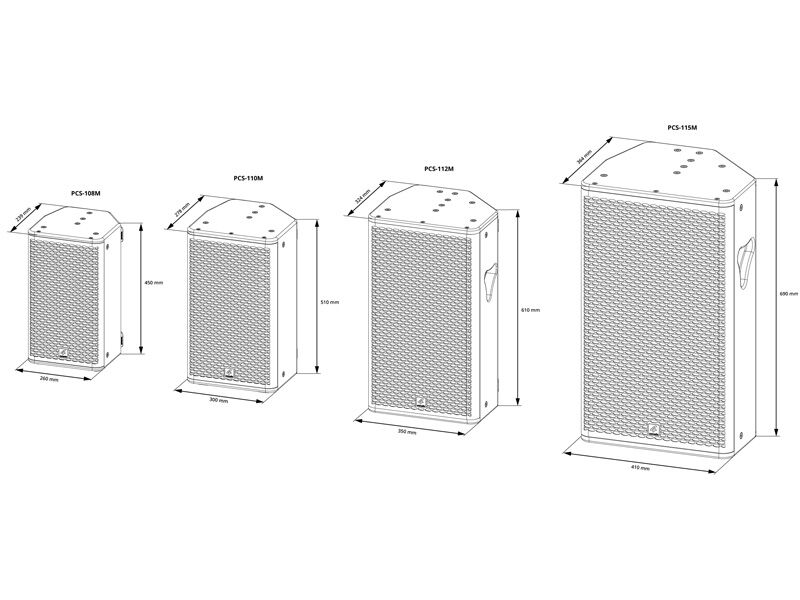

Zeichnung
