PCS-BS Subwoofer

Model	PCS-112BS	PCS-115BS	PCS-118BS	PCS-218BS
System Type	Single 12´´ Subwoofer	Single 15´´ Subwoofer	Single 12´´ Subwoofer	Dual 18´´ Subwoofer
Maximum SPL	127 dB	131 dB	136 dB	138
Dimensions (h/w/d)	530x350x450 mm	600x470x600 mm	695x570x628 mm	1000x500x700 mm
Net weight	24,0 kg	42,0 kg	44,0 kg	73,5 kg

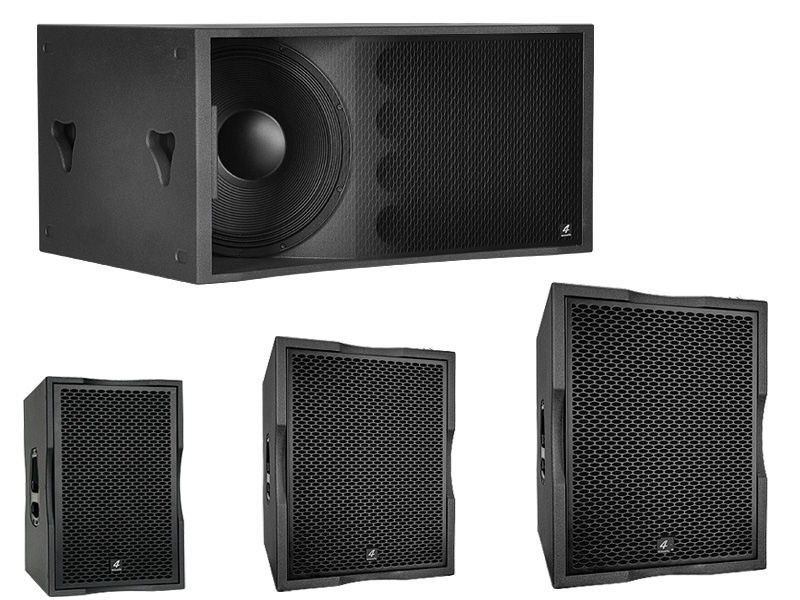

PCS-BS Passive Subwoofer Systems

The PCS-BS subwoofer series is a customised version of our popular PCS-B speakers. At the customer’s request, this series omits the hardware typically found in touring systems and features different drivers. In terms of quality and performance, however, it is in no way inferior to our touring range.

Technical Specifications

GS1 (EAN) CODE	4260318512060	4260318513241	4260318513258	4260318513265
System Type	Single 12“ Subwoofer	Single 15“ Subwoofer	Single 18“ Subwoofer	Dual 18“ Subwoofer
Power Rating	650 W AES 1300 W program 2600 W peak	800 W AES 1600 W program 3200 W peak	1500 W AES 3000 W program 6000 W peak	3000 W AES 6000 W program 12000 W peak
Frequency Range (+/- 3 dB)	42Hz - 180 Hz	39Hz - 150 Hz	38Hz - 120 Hz	30Hz - 200 Hz
Sensitivity	95 dB 1w/1m	97 dB 1w/1m	100 dB 1w/1m	101 dB 1w/1m
Maximum SPL	127 dB	131 dB	136 dB	138 dB
Nominal Impedance	8 Ohm	8 Ohm	8 Ohm	4 Ohm
Input Connectors	2xNeutrik NL4 Sockets Parallel 1+/1-	2xNeutrik NL4 Sockets Parallel 1+/1-	2xNeutrik NL4 Sockets Parallel 1+/1-	2xNeutrik NL4 Sockets Parallel 1+/1-
Housing	Birch plywood	Birch plywood	Birch plywood	Birch plywood
Coating	Waterproof polyurea coating	Waterproof polyurea coating	Waterproof polyurea coating	Waterproof polyurea coating

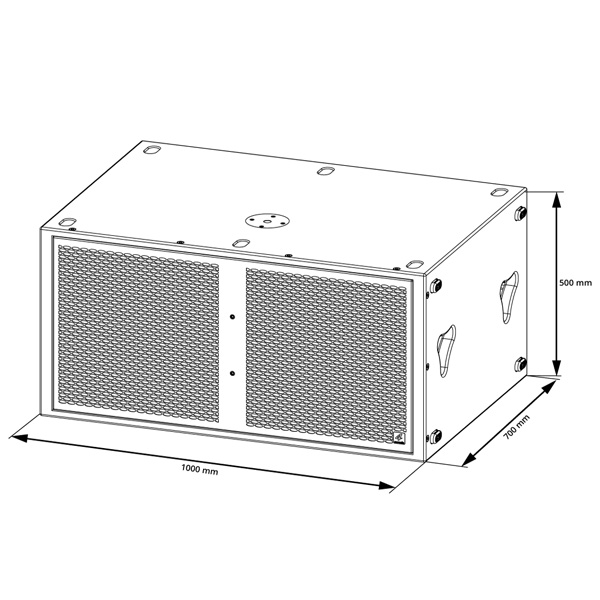

Dimensions (h/w/d)	530x350x450 mm	600x470x600 mm	695x570x628 mm	1000x500x700 mm mm
Net weight	24,0 kg	42,0 kg	44,0 kg	73,5 kg
