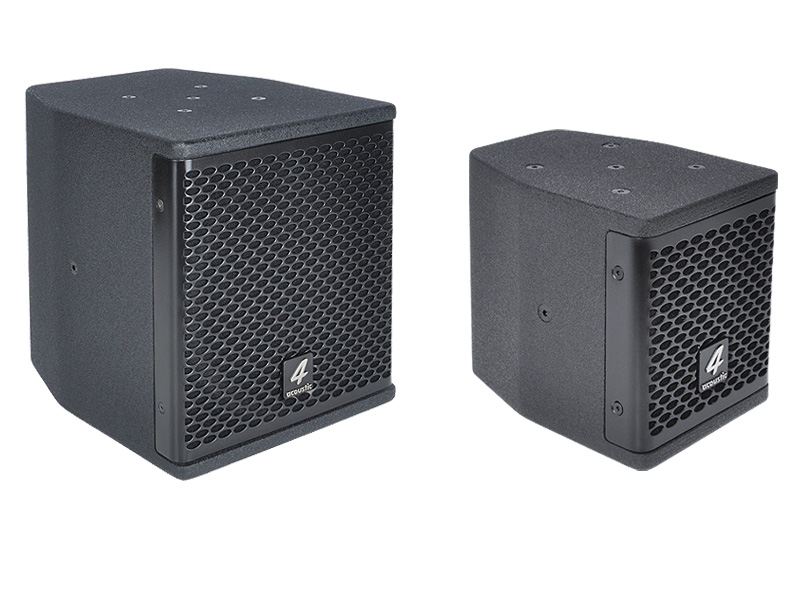

HCS-C Coaxial Point Source Speaker
| Model | HCS-105C | HCS-108C |
| System Type | 1x5"+1" Coaxial Point Source Speaker |
1x8"+1" Coaxial Point Source Speaker |
| Maximum SPL | 117 dB | 125 dB |
| Dimensions (h/w/d) | 165x140x185 mm | 244x220x265 mm |
| Net weight | 3,1 kg | 3,8 kg |
Coaxial source-point loudspeakers
The HCS-105C and HCS-108C are coaxial point-source loudspeakers that are ideal for background sound systems and monitor applications, as well as all types of near-field support. Thanks to their coaxial design featuring state-of-the-art neodymium drivers, they produce balanced, powerful sound. The enclosure is equipped with multiple mounting points for suspension brackets and wall-mount kits. To complement this versatile speaker series, we offer enclosures in a variety of colours, as well as a range of mounting solutions.
Technical Specifications
| Model | HCS-105C | HCS-108C |
| GS1 (EAN) CODE | 4260318510110 | 4260318510127 |
| System Type | 1x5"+1" Coaxial point source loudspeaker |
1x8"+1" Coaxial point source loudspeaker |
| Power Rating | 180 W AES 360 W program 720 W peak |
300 W AES 600 W program 1200 W peak |
| Coverage Pattern (hxv) | 100° Radial | 100° Radial |
| Frequency Range (+/- 3 dB) | 65 Hz - 20 kHz | 55 Hz - 20 kHz |
| Sensitivity | 93 dB 1w/1m | 98 dB 1w/1m |
| Maximum SPL | 117 dB | 125 dB |
| Nominal Impedance | 8 Ohm | 8 Ohm |
| Input Connectors | 2xNeutrik NL4 Sockets Parallel 1+/1- |
2xNeutrik NL4 Sockets Parallel 1+/1- |
| Housing | Birch plywood | Birch plywood |
| Coating | Waterproof polyurea coating | Waterproof polyurea coating |
| Dimensions (h/w/d) | 165x140x185 mm | 244x220x265 mm |
| Net weight | 3,1 kg | 3,8 kg |

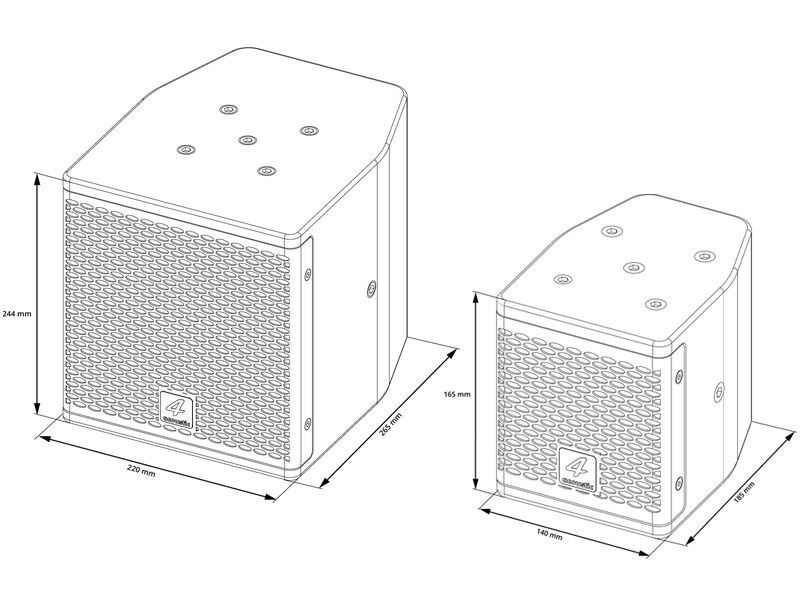

Drawing
