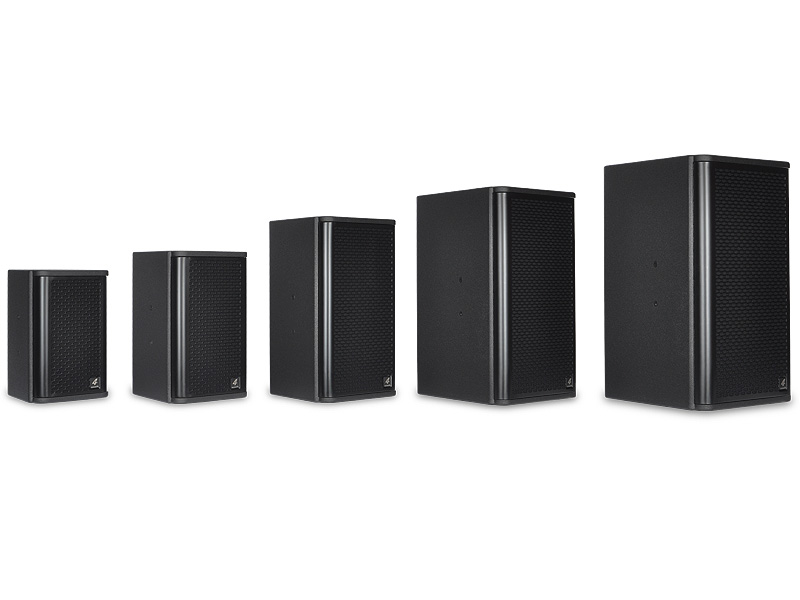

PCS-Q Point Source Full-Range Speakers
| Model | PCS-106Q | PCS-108Q | PCS-110Q | PCS-112Q | PCS-115Q |
| System Type | 2-Way 6,5“+1“ Point Source Full-Range Speakers |
2-Way 8“+1“ Point Source Full-Range Speakers |
2-Way 10“+1“ Point Source Full-Range Speakers |
2-Way 12“+1,4“ Point Source Full-Range Speakers |
2-Way 15“+1,4“ Point Source Full-Range Speakers |
| Maximum SPL | 117 dB | 122 dB | 128 dB | 136 | 136 dB |
| Dimensions (h/w/d) | 365x249x242 mm | 450x275x290 mm | 525x312x295 mm | 620x374x385 mm | 700x419x436 mm |
| Net weight | 9,5 kg | 13,0 kg | 16,5 kg | 23,0 kg | 34,0 kg |
Point Source installation speakers
We are expanding our product range with the PCS-Q series, which includes five high-quality, premium, full-range loudspeakers designed for touring and fixed installations. All models are equipped with oversized, precisely tuned crossovers. This series is characterised by transparent and clearly differentiated midrange and high frequencies. Even at very high sound pressure levels, they ensure a harmonious sound. No compromises were made during the manufacturing process. The selection of wood, finish and speaker components is focused exclusively on creating unique sound experiences. All speakers in the PCS-Q series feature various mounting options for wall and ceiling installation. Transport covers and cases are available as optional extras.
Technical Specifications
| Model | PCS-106Q | PCS-108Q | PCS-110Q | PCS-112Q | PCS-115Q |
| GS1 (EAN) CODE | 4260318511636 | 4260318511643 | 4260318511469 | 4260318512008 | 4260318511711 |
| System Type | 2-Wege 6,5“+1“ Point Source Full-Range Speaker |
2-Wege 8“+1“ Point Source Full-Range Speaker |
2-Wege 10“+1“ Point Source Full-Range Speaker |
2-Wege 12“+1,4“ Point Source Full-Range Speaker |
2-Wege 15“+1,4“ Point Source Full-Range Speaker |
| Power Rating | 100 W AES 200 W program 400 W peak |
200 W AES 400 W program 800 W peak |
300 W AES 600 W program 1200 W peak |
500 W AES 1000 W program 2000 W peak |
600 W AES 1200 W program 2400 W peak |
| Coverage Pattern (hxv) | 90°x40° | 90°x40° | 90°x40° | 90°x40° | 90°x40° |
| Frequency Range (+/- 3 dB) | 57 Hz - 20 kHz | 53 Hz - 20 kHz | 50 Hz - 20 kHz | 41 Hz - 20 kHz | 40 Hz - 20 kHz |
| Sensitivity | 95 dB 1w/1m | 96 dB 1w/1m | 98 dB 1w/1m | 101 dB 1w/1m | 101 dB 1w/1m |
| Maximum SPL | 127 dB | 122 dB | 128 dB | 136 dB | 136 dB |
| Nominal Impedance | 8 Ohm | 8 Ohm | 8 Ohm | 8 Ohm | 8 Ohm |
| Input Connectors | 2xNeutrik NL4 Sockets Parallel 1+/1- |
2xNeutrik NL4 Sockets Parallel 1+/1- |
2xNeutrik NL4 Sockets Parallel 1+/1- |
2xNeutrik NL4 Sockets Parallel 1+/1- |
2xNeutrik NL4 Sockets Parallel 1+/1- |
| Housing | Birch plywood | Birch plywood | Birch plywood | Birch plywood | Birch plywood |
| Coating | Waterproof polyurea coating | Waterproof polyurea coating | Waterproof polyurea coating | Waterproof polyurea coating | Waterproof polyurea coating |
| Dimensions (h/w/d) | 365x249x242 mm | 450x275x290 mm | 525x312x295 mm | 620x374x385 mm | 700x419x436 mm |
| Net weight | 9,5 kg | 13,0 kg | 16,5 kg | 23,0 kg | 34,0 kg |

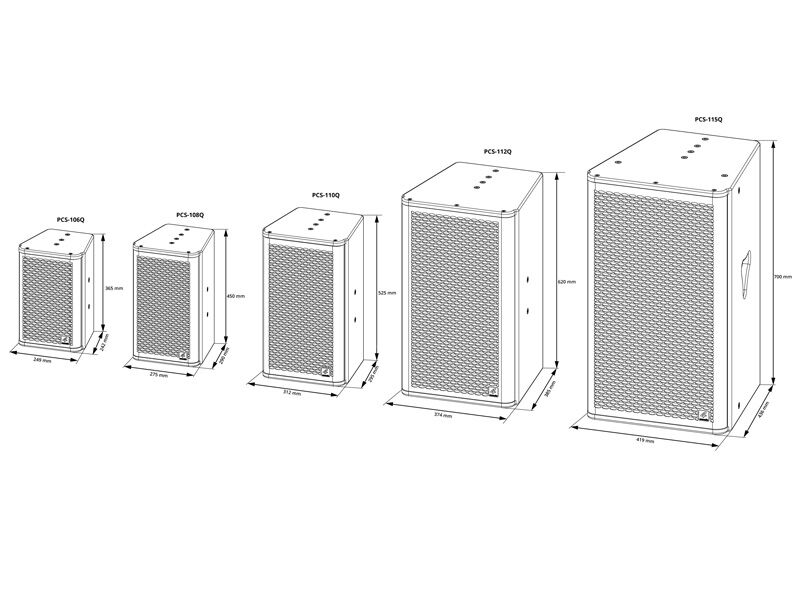

Drawing
Photos PCS-106Q
Photos PCS-108Q
Photos PCS-110Q

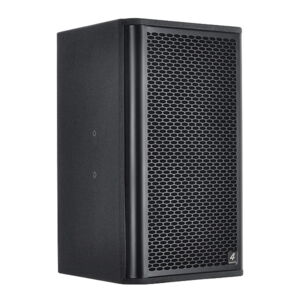

Photos PCS-112Q
Photos PCS-115Q
