V-Series KTV Speakers Take It to a Whole New Level
A new level in professional karaoke speakers
Designed and optimised for use in karaoke bars, the PCS-V10 and PCS-V12 are professional karaoke speakers. Thanks to their oversized crossovers and premium speaker drivers, the PCS-V series is highly resistant to feedback and distortion. Working closely with our customers, we have fine-tuned the sound characteristics and dispersion patterns for optimal performance in karaoke bars. The bass reflex ports are located at the back of the speakers to ensure optimal bass coupling with the room. The mounting points for ceiling and wall brackets are compatible with standard systems used in karaoke rooms. The same high standards of quality and craftsmanship valued in our touring products are maintained here.

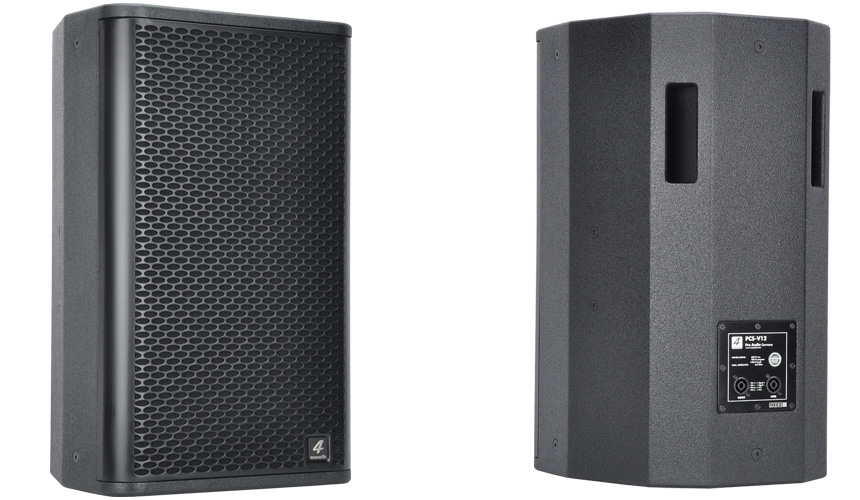

PCS-V Series Overview
| Model | PCS-10V | PCS-12V |
| System Type | 2-way 10" + 1" KTV speaker |
2-way 12" + 1" KTV speaker |
| Maximum SPL | 128 dB | 133 dB |
| Dimensions (h/w/d) | 550x330x313 mm | 630x385x342 mm |
| Net weight | 18,5 kg | 23,8 kg |
Technical Specifications
| Model | PCS-V10 | PCS-V12 |
| GS1 (EAN) CODE | 4260318511780 | 4260318511797 |
| System Type | 2-way 10" + 1" KTV speaker |
2-way 12" + 1" KTV speaker |
| Power Rating | 350 W AES 600 W program 1200 W peak |
350 W AES 700 W program 1400 W peak |
| Coverage Pattern (hxv) | 100°x40° | 100°x40° |
| Frequency Range (+/- 3 dB) | 49 Hz - 20 kHz | 41 Hz - 20 kHz |
| Sensitivity | 99 dB 1w/1m | 102 dB 1w/1m |
| Maximum SPL | 128 dB | 133 dB |
| Nominal Impedance | 8 Ohm | 8 Ohm |
| Input Connectors | 2xNeutrik NL4 Sockets Parallel 1+/1- |
2xNeutrik NL4 Sockets Parallel 1+/1- |
| Housing | Waterproof polyurea coating | Waterproof polyurea coating |
| Coating | Waterproof polyurea coating | Waterproof polyurea coating |
| Dimensions (h/w/d) | 550x330x313 mm | 630x385x342 mm |
| Net weight | 18,5 kg | 23,8 kg |
