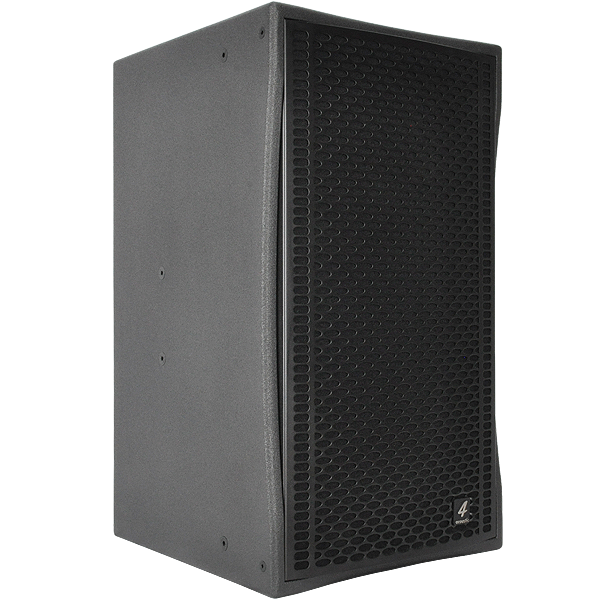

DR Series custom-made KTV speakers
Get ready for incredible sound

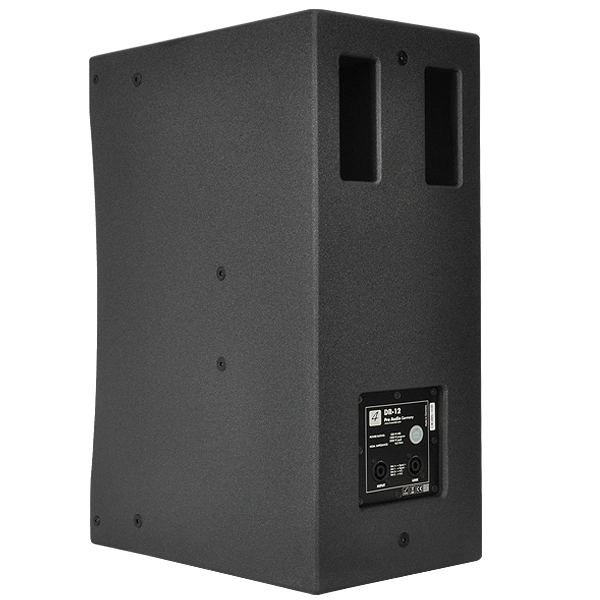

The DR-10 and DR-12 are top-of-the-range professional karaoke speakers. Thanks to an oversized crossover and premium speaker drivers, the DR series is highly resistant to feedback and distortion. Working closely with our customers, we have optimised the sound characteristics and dispersion patterns for use in karaoke applications. The bass reflex ports are located on the rear panel to ensure optimal bass integration with the room. The mounting points for ceiling and wall brackets are compatible with standard systems used in KTV rooms. The quality and craftsmanship meet the same high standards valued in our touring products.
DR Series Overview
| Model | DR-10 | DR-12 |
| System Type | 2-way 10" + 1" KTV speaker |
2-way 12" + 1" KTV speaker |
| Maximum SPL | 128 dB | 130 dB |
| Dimensions (h/w/d) | 500x313,5x365,5 mm | 600x361,5x404 mm |
| Net weight | 20,0 kg | 26,5,0 kg |
Technical Specifications
| Model | DR-10 | DR-12 |
| GS1 (EAN) CODE | 4260318512954 | 4260318512961 |
| System Type | 2-way 10" + 1" KTV speaker |
2-way 12" + 1" KTV speaker |
| Power Rating | 350 W AES 700 W program 1400 W peak |
500 W AES 1000 W program 2000 W peak |
| Coverage Pattern (hxv) | 90°x40° | 60°x40° |
| Frequency Range (+/- 3 dB) | 60 Hz - 20 kHz | 55 Hz - 20 kHz |
| Sensitivity | 98 dB 1w/1m | 99 dB 1w/1m |
| Maximum SPL | 128 dB | 130 dB |
| Nominal Impedance | 8 Ohm | 8 Ohm |
| Input Connectors | 2xNeutrik NL4 Sockets Parallel 1+/1- |
2xNeutrik NL4 Sockets Parallel 1+/1- |
| Housing | Birch plywood | Birch plywood |
| Coating | Waterproof polyurea coating | Waterproof polyurea coating |
| Dimensions (h/w/d) | 500x313,5x365,5 mm | 600x361,5x404 mm |
| Net weight | 20,0 kg | 26,5 kg |

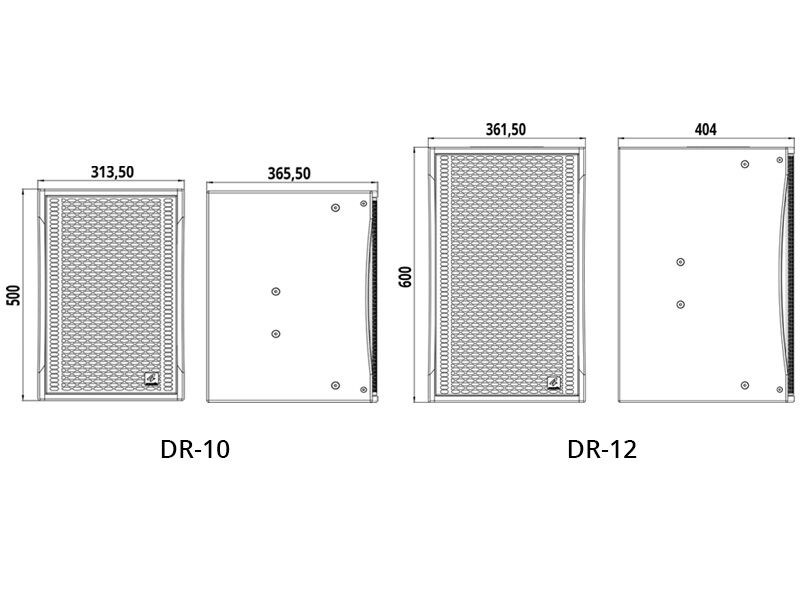

Drawing
Overview
