CLS Club Sound Subwoofer
| Model | CLS-215HB | CLS-218HB | CLS-218HBN |
| System Type | 2x15“ Horn Subwoofer | 2x18“ Horn Subwoofer | 2x18“ Neodymium Horn Subwoofer |
| Maximum SPL | 136 dB | 138 dB | 138 dB |
| Dimensions (h/w/d) | 496x1054x770 mm | 600x1500x770 mm | 600x1500x770 mm |
| Net weight | 88,0 kg | 128,5 kg | 122,0 kg |
CLS Club-Sound Subwoofer
In response to the high demand for impressive sound reinforcement systems in clubs, we have developed our powerful CLS Club Sound Systems. These horn-loaded systems boast an innovative mechanical and acoustic design, transparent and powerful sound reproduction, and extremely high sound pressure levels. The horn-loaded CLS-215HB subwoofer serves as a low/mid-range subwoofer, providing solid kick bass and ensuring a smooth transition between the 18" subwoofers and the horn-loaded top cabinets. The CLS-218HB is also available with a neodymium driver as the CLS-218-HBN.
Technical Specifications
| Model | CLS-215HB | CLS-218HB | CLS-218HBN |
| GS1 (EAN) CODE | 4260318512930 | 4260318512923 | 4260318512978 |
| System Type | 2x15“ Horn Subwoofer | 2x18“ Horn Subwoofer | 2x15“ Neodym Horn Subwoofer |
| Power Rating | 1600 W AES 3200 W program 6400 W peak |
3400 W AES 6800 W program 13600 W peak |
3400 W AES 6800 W program 13600 W peak |
| Frequency Range (+/- 3 dB) | 60 Hz - 240 Hz | 30 Hz - 160 Hz | 30 Hz - 160 Hz |
| Sensitivity | 104 dB 1w/1m | 103 dB 1w/1m | 103 dB 1w/1m |
| Maximum SPL | 136 dB | 138 dB | 138 dB |
| Nominal Impedance | 4 Ohm | 4 Ohm | 4 Ohm |
| Input Connectors | 2xNeutrik NL4 Sockets Parallel 1+/1- |
2xNeutrik NL4 Sockets Parallel 1+/1- |
2xNeutrik NL4 Sockets Parallel 1+/1- |
| Housing | Birch plywood | Birch plywood | Birch plywood |
| Coating | Waterproof polyurea coating | Waterproof polyurea coating | Waterproof polyurea coating |
| Dimensions (h/w/d) | 496x1054x770 mm | 600x1500x770 mm | 600x1500x770 mm |
| Net weight | 88,0 kg | 128,5 kg | 122,0 kg |

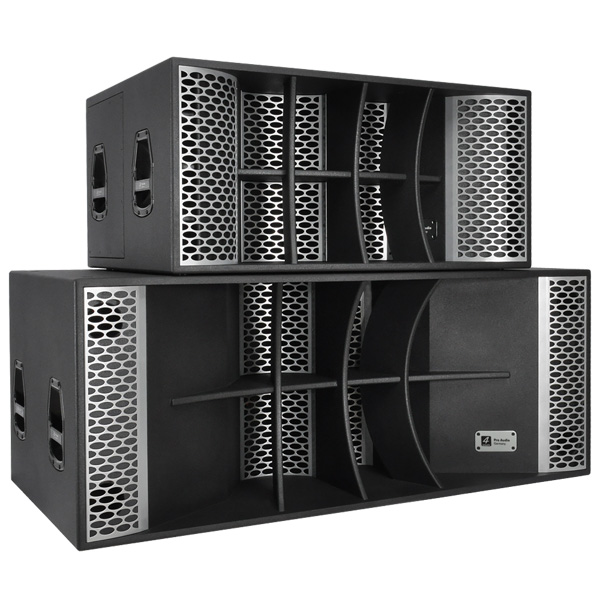

Photos CLS-215HB and CLS-218HB
