PCS-X Full-Range Speakers

Model	PCS-X6	PCS-X8	PCS-X10	PCS-X12	PCS-X15
System Type	2-Way 6,5“+1“ Full-range speakers	2-Way 8“+1“ Full-range speakers	2-Way 10“+1“ Full-range speakers	2-Way 12“+1,4“ Full-range speakers	2-Way 15“+1,4“ Full-range speakers
Maximum SPL	117 dB	122 dB	128 dB	136	136 dB
Dimensions (h/w/d)	365x249x242 mm	450x275x290 mm	525x312x295 mm	620x374x385 mm	700x419x436 mm
Net weight	9,5 kg	13,0 kg	16,5 kg	23,0 kg	34,0 kg

PCS-X Premium Full-Range Speakers

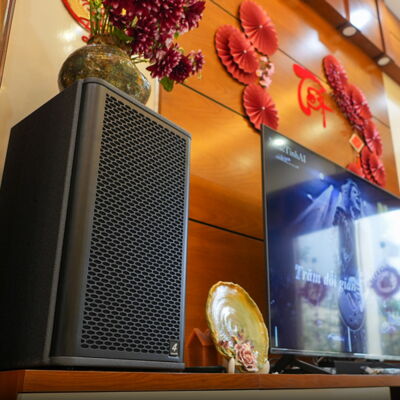

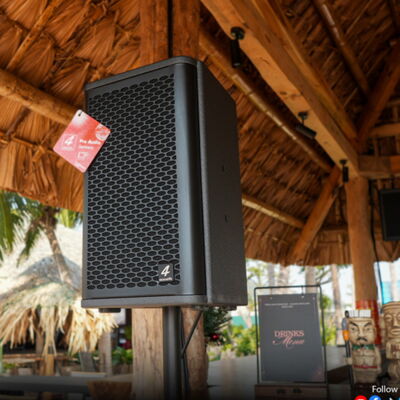

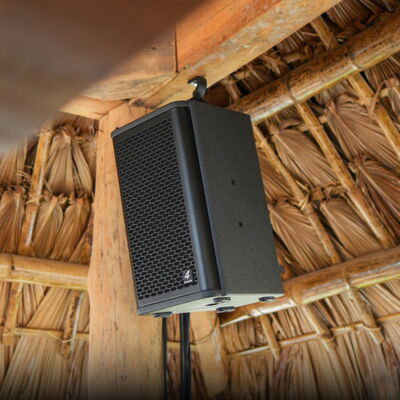

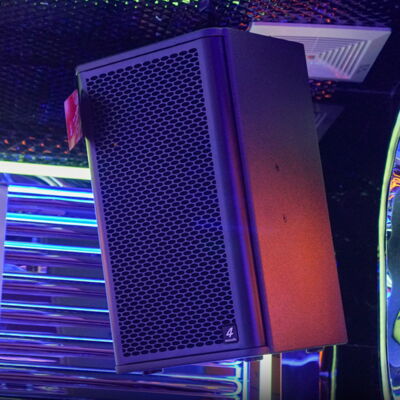

We present the PCS-X series, a custom-made project offering high-quality, premium-class installation speakers. All models are equipped with oversized, precisely tuned crossovers. The sound calibration was developed in close collaboration with our customers and is characterised by a transparent, clearly defined midrange. This tuning, combined with high-quality, oversized crossover components, ensures a harmonious sound even at very high sound pressure levels. No compromises were made in the craftsmanship. The selection of wood, finish and speaker components focuses exclusively on creating unique sound experiences. All speakers in the PCS-X series feature various mounting options for wall and ceiling installation.

Technical Specifications

Model	PCS-X6	PCS-X8	PCS-X10	PCS-X12	PCS-X15
GS1 (EAN) CODE	4260318511636	4260318511643	4260318511469	4260318512008	4260318511711
System Type	2-Wege 6,5“+1“ Full-range speaker	2-Wege 8“+1“ Full-range speaker	2-Wege 10“+1“ Full-range speaker	2-Wege 12“+1,4“ Full-range speaker	2-Wege 15“+1,4“ Full-range speaker
Power Rating	100 W AES 200 W program 400 W peak	200 W AES 400 W program 800 W peak	300 W AES 600 W program 1200 W peak	500 W AES 1000 W program 2000 W peak	600 W AES 1200 W program 2400 W peak
Coverage Pattern (hxv)	90°x40°	90°x40°	90°x40°	90°x40°	90°x40°
Frequency Range (+/- 3 dB)	57 Hz - 20 kHz	53 Hz - 20 kHz	50 Hz - 20 kHz	41 Hz - 20 kHz	40 Hz - 20 kHz
Sensitivity	95 dB 1w/1m	96 dB 1w/1m	98 dB 1w/1m	101 dB 1w/1m	101 dB 1w/1m
Maximum SPL	127 dB	122 dB	128 dB	136 dB	136 dB
Nominal Impedance	8 Ohm	8 Ohm	8 Ohm	8 Ohm	8 Ohm
Input Connectors	2xNeutrik NL4 Socket Parallel 1+/1-	2xNeutrik NL4 Socket Parallel 1+/1-	2xNeutrik NL4 Socket Parallel 1+/1-	2xNeutrik NL4 Socket Parallel 1+/1-	2xNeutrik NL4 Socket Parallel 1+/1-
Housing	Birch plywood	Birch plywood	Birch plywood	Birch plywood	Birch plywood
Coating	Waterproof polyurea coating	Waterproof polyurea coating	Waterproof polyurea coating	Waterproof polyurea coating	Waterproof polyurea coating

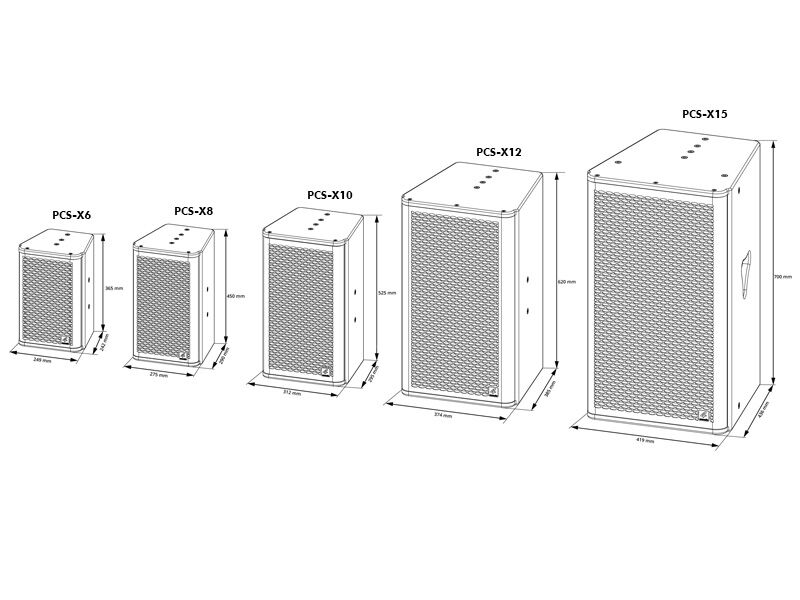

Dimensions (h/w/d)	365x249x242 mm	450x275x290 mm	525x312x295 mm	620x374x385 mm	700x419x436 mm
Net weight	9,5 kg	13,0 kg	16,5 kg	23,0 kg	34,0 kg
